New for 2026

Revolt

Split multi-spoke · simulated beadlock

The Revolt pairs aggressive styling with trail-focused performance. A bold split multi-spoke design and simulated beadlock detailing give it a tough, trail-ready look.

Built from high-strength aluminum alloy, the Revolt has a ribbed bead seat that helps keep the tire seated at low pressures, reducing the risk of de-beading during serious off-road use and rock crawling.

Finish

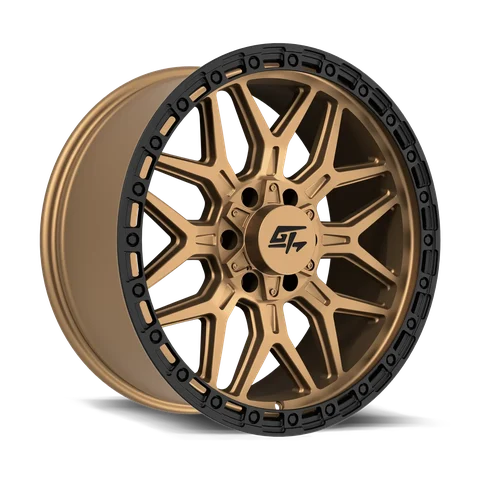

Matte Bronze

Sizes & offsets (mm)

Available sizes by diameter
17"	17x8.5+2517x9+1217x9−12
18"	18x9+1218x10−12
20"	20x9+1220x10−18

Request a quote Find a dealer

Not every size is offered in every bolt pattern. Tell us your truck and we'll confirm the exact fitment.

Full specifications Part numbers (84) Download spec sheet (PDF)

Specifications

Revolt spec sheet

Every size, offset, bolt pattern and finish for the GT Off-Road Revolt.

Download PDF

Diameters: 17" · 18" · 20"
Widths: 8.5" · 9" · 10"
Offset range: +25 to −18 mm
Lug options: 5 / 6 / 8-lug
Center bore: 78.1–125.2 mm
Max load: Up to 3,200 lbs
Finishes: 5
Part numbers: 84

Sizes & fitment

Revolt sizes, offsets and approximate backspacing
Size	Diameter	Width	Offset (mm)	Backspacing*	Stance
17x8.5	17"	8.5"	+25	5.73"	Mostly flush
17x9	17"	9"	+12	5.47"	Mostly flush
17x9	17"	9"	−12	4.53"	Mild poke
18x9	18"	9"	+12	5.47"	Mostly flush
18x10	18"	10"	−12	5.03"	Mild poke
20x9	20"	9"	+12	5.47"	Mostly flush
20x10	20"	10"	−18	4.79"	Mild poke

*Approximate, calculated from width and offset. Actual stance depends on your truck's factory offset, lift and tire size.

Bolt patterns

5x1275 x 5"

5x139.75 x 5.5"

6x1356 x 135 mm

6x139.76 x 5.5"

8x165.18 x 6.5"

8x1708 x 170 mm

8x1808 x 180 mm

Bolt pattern availability varies by size. See the part number list for exact availability.

Construction & features

High-strength aluminum alloy construction
Ribbed bead seat for low-pressure off-road use

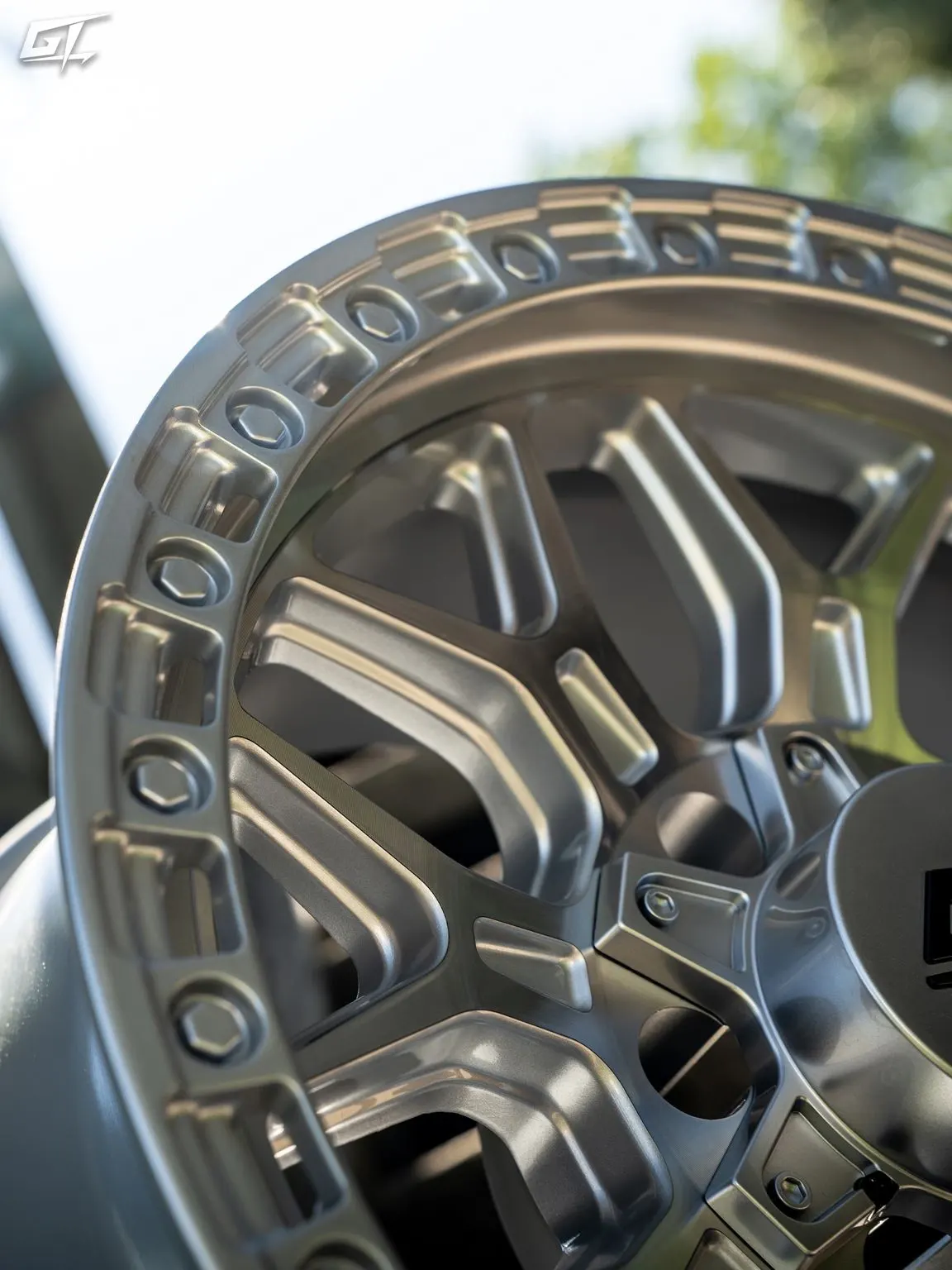

Simulated beadlock ring (black on colour finishes)
Split multi-spoke design

Finishes

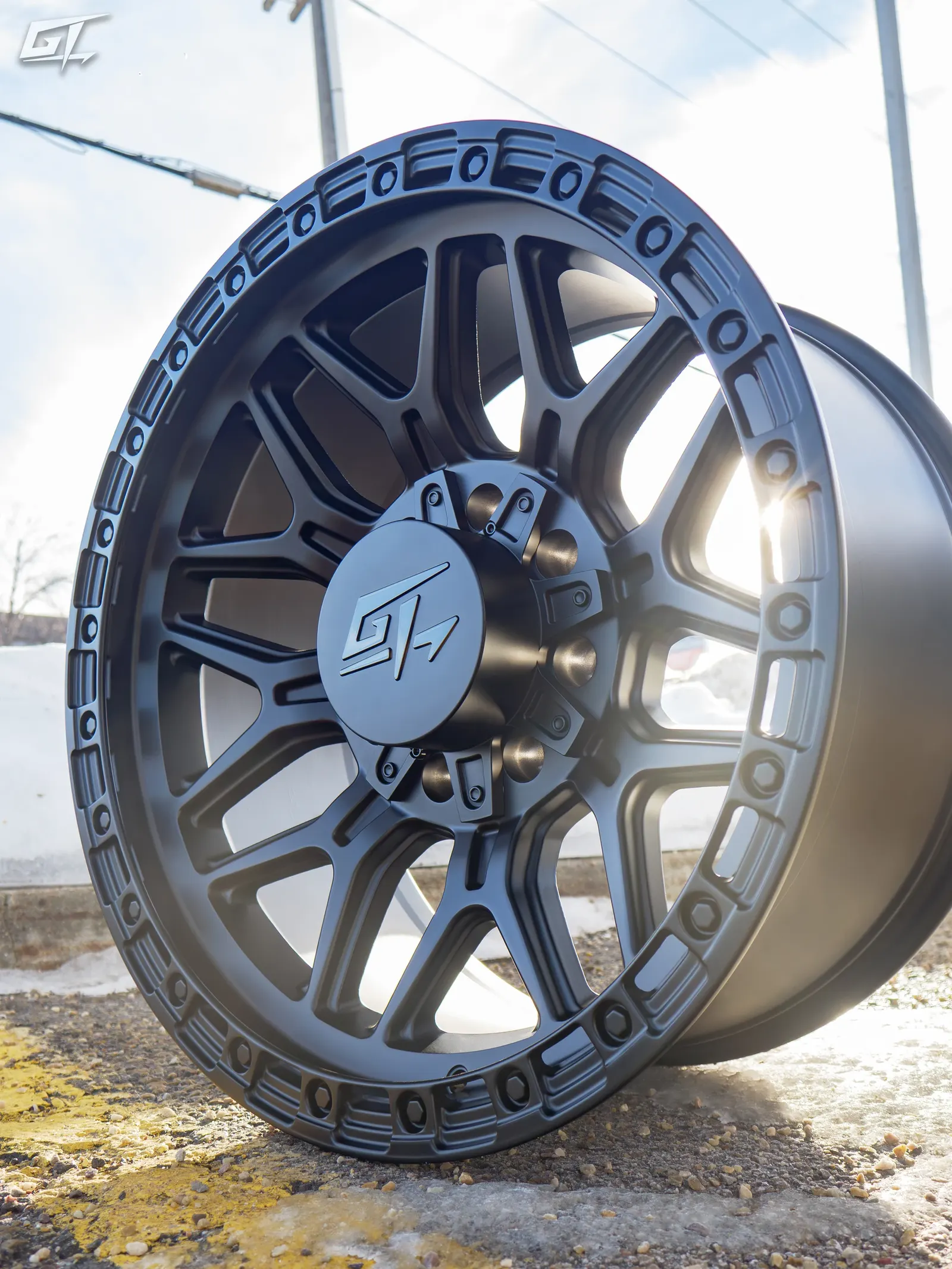

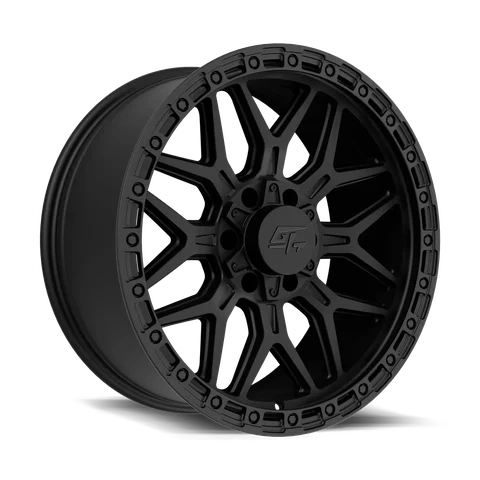

GT Off-Road Revolt in Matte Black — Matte Black

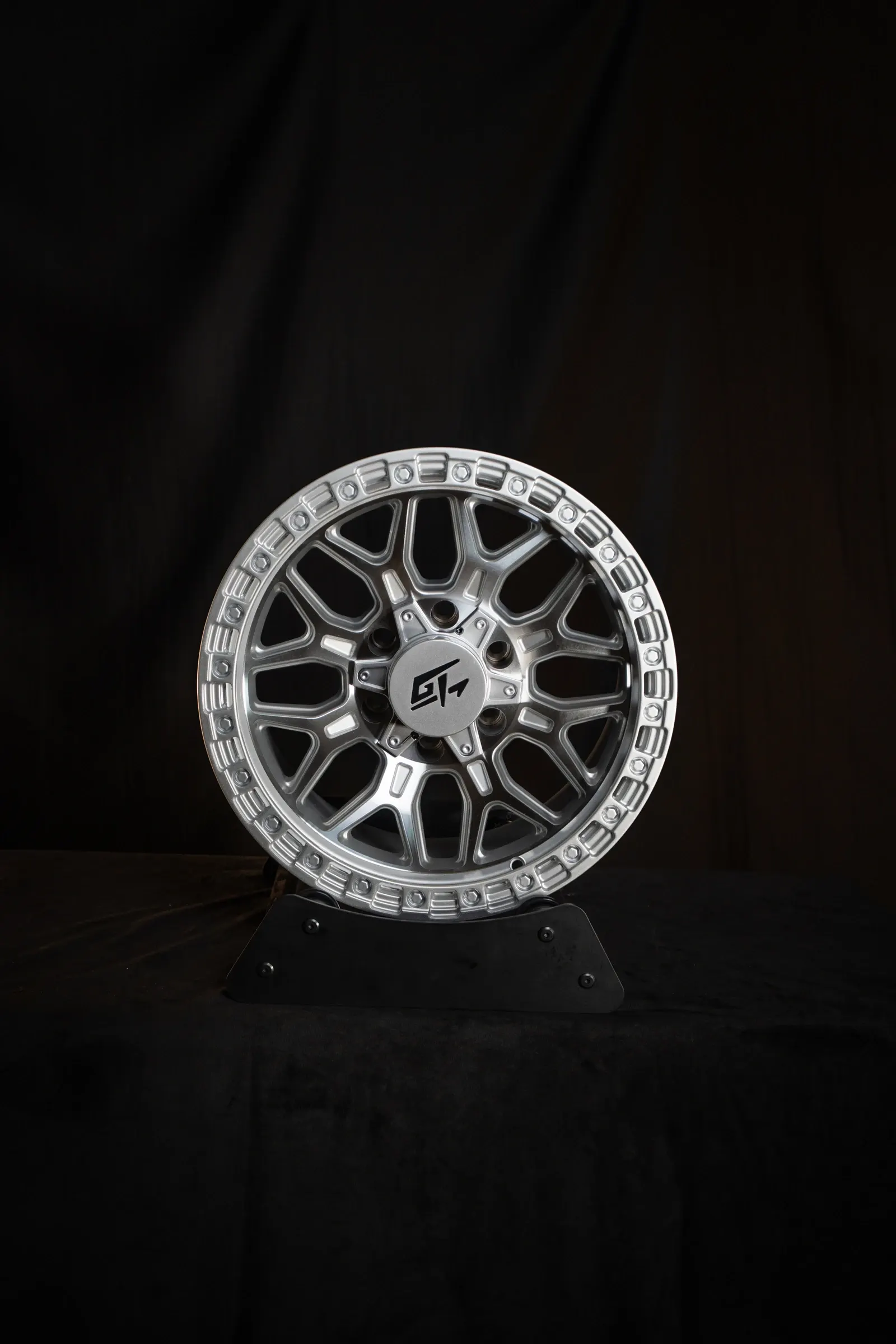

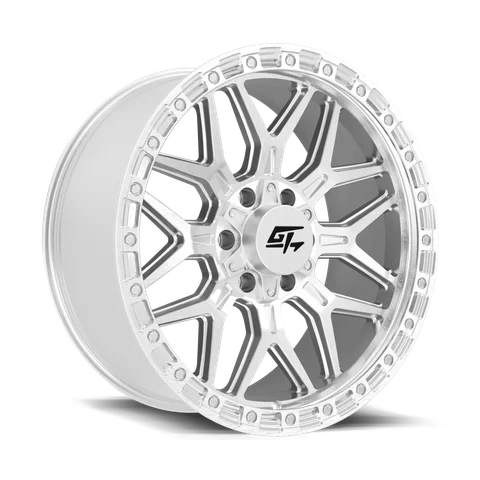

GT Off-Road Revolt in Silver Machined — Silver Machined

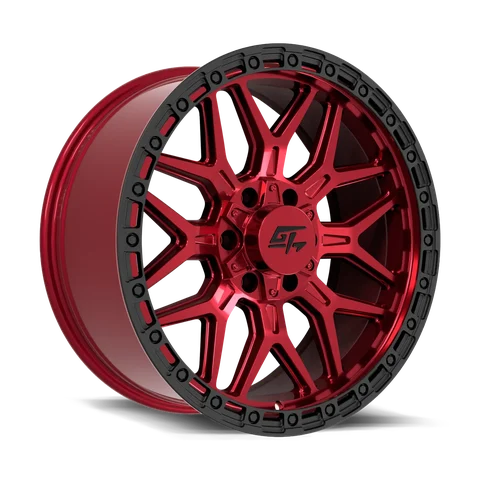

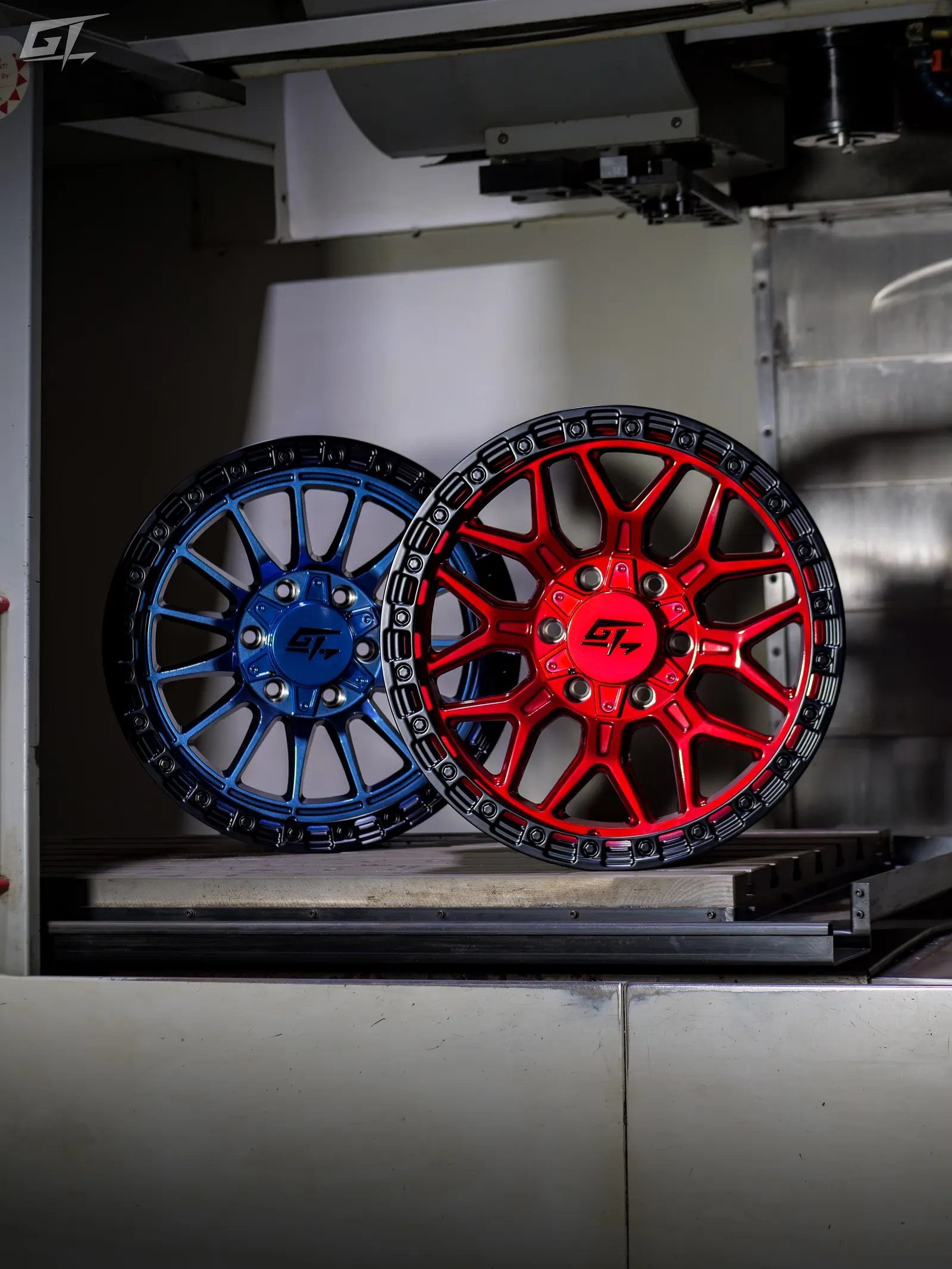

GT Off-Road Revolt in Inferno Red — Inferno Red

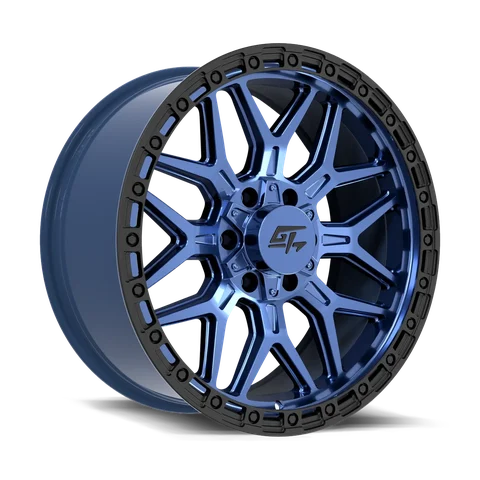

GT Off-Road Revolt in Midnight Blue — Midnight Blue

Complete spec sheet

Revolt part numbers

Every Revolt SKU by finish, size, offset and bolt pattern. Give your dealer the part number for an exact match.

Download CSV

84 of 84 part numbers

GT Off-Road Revolt part numbers
Finish	Size	Offset	Bolt pattern	Center bore (mm)	Max load (lbs)	Quote
Matte Black	17x8.5	+25	5x127 / 5x139.7	78.1	2,500	Quote
Matte Black	17x8.5	+25	6x135 / 6x139.7	106.1	2,500	Quote
Matte Black	17x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Matte Black	17x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Matte Black	17x9	+12	8x165.1 / 8x170	125.2	3,200	Quote
Matte Black	17x9	−12	5x127 / 5x139.7	78.1	2,500	Quote
Matte Black	17x9	−12	6x135 / 6x139.7	106.1	2,500	Quote
Matte Black	18x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Matte Black	18x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Matte Black	18x9	+12	8x165.1 / 8x170	125.2	3,200	Quote
Matte Black	18x9	+12	8x165.1 / 8x180	125.2	3,200	Quote
Matte Black	18x9	−12	5x127 / 5x139.7	78.1	2,500	Quote
Matte Black	18x9	−12	6x135 / 6x139.7	106.1	2,500	Quote
Matte Black	20x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Matte Black	20x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Matte Black	20x9	+12	8x165.1 / 8x170	125.2	3,200	Quote
Matte Black	20x9	+12	8x165.1 / 8x180	125.2	3,200	Quote
Matte Black	20x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Matte Black	20x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Matte Black	20x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Matte Black	20x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Silver Machined	17x8.5	+25	5x127 / 5x139.7	78.1	2,500	Quote
Silver Machined	17x8.5	+25	6x135 / 6x139.7	106.1	2,500	Quote
Silver Machined	17x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Silver Machined	17x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Silver Machined	17x9	−12	5x127 / 5x139.7	78.1	2,500	Quote
Silver Machined	17x9	−12	6x135 / 6x139.7	106.1	2,500	Quote
Silver Machined	18x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Silver Machined	18x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Silver Machined	18x9	−12	5x127 / 5x139.7	78.1	2,500	Quote
Silver Machined	18x9	−12	6x135 / 6x139.7	106.1	2,500	Quote
Silver Machined	20x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Silver Machined	20x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Silver Machined	20x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Silver Machined	20x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Inferno Red	17x8.5	+25	5x127 / 5x139.7	78.1	2,500	Quote
Inferno Red	17x8.5	+25	6x135 / 6x139.7	106.1	2,500	Quote
Inferno Red	17x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Inferno Red	17x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Inferno Red	17x9	−12	5x127 / 5x139.7	78.1	2,500	Quote
Inferno Red	17x9	−12	6x135 / 6x139.7	106.1	2,500	Quote
Inferno Red	18x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Inferno Red	18x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Inferno Red	18x9	−12	5x127 / 5x139.7	78.1	2,500	Quote
Inferno Red	18x9	−12	6x135 / 6x139.7	106.1	2,500	Quote
Inferno Red	20x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Inferno Red	20x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Inferno Red	20x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Inferno Red	20x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Midnight Blue	17x8.5	+25	5x127 / 5x139.7	78.1	2,500	Quote
Midnight Blue	17x8.5	+25	6x135 / 6x139.7	106.1	2,500	Quote
Midnight Blue	17x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Midnight Blue	17x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Midnight Blue	17x9	−12	5x127 / 5x139.7	78.1	2,500	Quote
Midnight Blue	17x9	−12	6x135 / 6x139.7	106.1	2,500	Quote
Midnight Blue	18x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Midnight Blue	18x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Midnight Blue	18x9	−12	5x127 / 5x139.7	78.1	2,500	Quote
Midnight Blue	18x9	−12	6x135 / 6x139.7	106.1	2,500	Quote
Midnight Blue	20x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Midnight Blue	20x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Midnight Blue	20x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Midnight Blue	20x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Matte Bronze	17x8.5	+25	5x127 / 5x139.7	78.1	2,500	Quote
Matte Bronze	17x8.5	+25	6x135 / 6x139.7	106.1	2,500	Quote
Matte Bronze	17x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Matte Bronze	17x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Matte Bronze	17x9	+12	8x165.1 / 8x170	125.2	3,200	Quote
Matte Bronze	17x9	−12	5x127 / 5x139.7	78.1	2,500	Quote
Matte Bronze	17x9	−12	6x135 / 6x139.7	106.1	2,500	Quote
Matte Bronze	18x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Matte Bronze	18x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Matte Bronze	18x9	+12	8x165.1 / 8x170	125.2	3,200	Quote
Matte Bronze	18x9	+12	8x165.1 / 8x180	125.2	3,200	Quote
Matte Bronze	18x9	−12	5x127 / 5x139.7	78.1	2,500	Quote
Matte Bronze	18x9	−12	6x135 / 6x139.7	106.1	2,500	Quote
Matte Bronze	20x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Matte Bronze	20x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Matte Bronze	20x9	+12	8x165.1 / 8x170	125.2	3,200	Quote
Matte Bronze	20x9	+12	8x165.1 / 8x180	125.2	3,200	Quote
Matte Bronze	20x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Matte Bronze	20x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Matte Bronze	20x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Matte Bronze	20x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
