Tomahawk

Directional split-spoke · deep lip

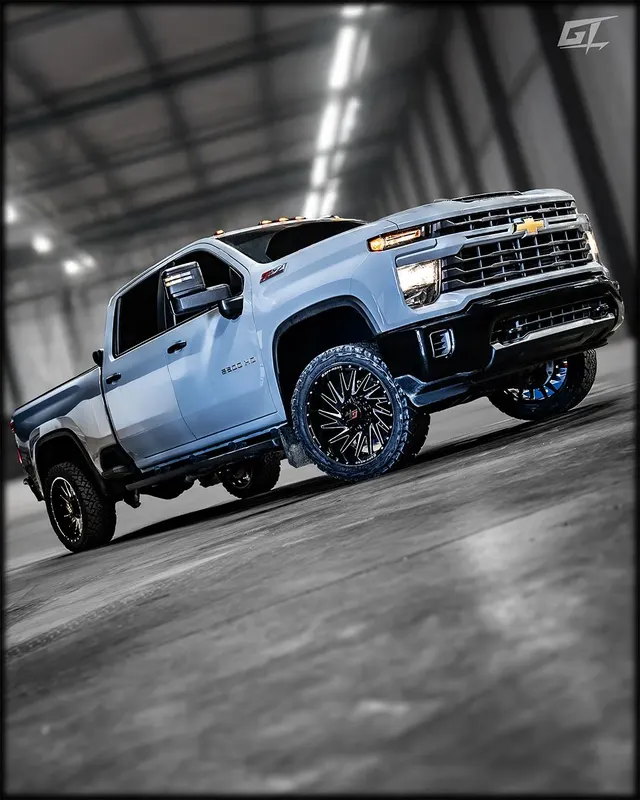

The Tomahawk's directional split straight-spoke layout adds a sense of motion even when the truck is parked.

A deep lip sharpens its stance, while exposed lug holes and a clean, bold GT center cap give it a rugged, mechanical edge.

Finish

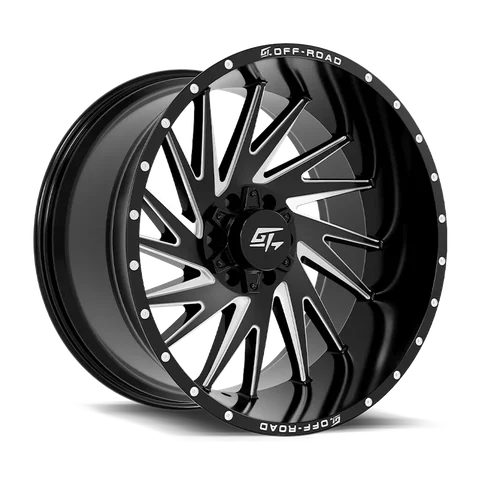

Gloss Black Milled

Sizes & offsets (mm)

Available sizes by diameter
20"	20x9+1220x10−18
22"	22x10−1822x12−44
24"	24x12−4424x14−76

Request a quote Find a dealer

Not every size is offered in every bolt pattern. Tell us your truck and we'll confirm the exact fitment.

Full specifications Part numbers (72) Download spec sheet (PDF)

Specifications

Tomahawk spec sheet

Every size, offset, bolt pattern and finish for the GT Off-Road Tomahawk.

Download PDF

Diameters: 20" · 22" · 24"
Widths: 9" · 10" · 12" · 14"
Offset range: +12 to −76 mm
Lug options: 5 / 6 / 8-lug
Center bore: 78.1–125.2 mm
Max load: Up to 3,200 lbs
Finishes: 3
Part numbers: 72

Sizes & fitment

Tomahawk sizes, offsets and approximate backspacing
Size	Diameter	Width	Offset (mm)	Backspacing*	Stance
20x9	20"	9"	+12	5.47"	Mostly flush
20x10	20"	10"	−18	4.79"	Mild poke
22x10	22"	10"	−18	4.79"	Mild poke
22x12	22"	12"	−44	4.77"	Aggressive poke
24x12	24"	12"	−44	4.77"	Aggressive poke
24x14	24"	14"	−76	4.51"	Extreme poke

*Approximate, calculated from width and offset. Actual stance depends on your truck's factory offset, lift and tire size.

Bolt patterns

5x1275 x 5"

5x139.75 x 5.5"

6x1356 x 135 mm

6x139.76 x 5.5"

8x165.18 x 6.5"

8x1708 x 170 mm

8x1808 x 180 mm

Bolt pattern availability varies by size. See the part number list for exact availability.

Construction & features

Directional split straight-spoke design
Deep lip
Exposed lug holes
GT center cap

Finishes

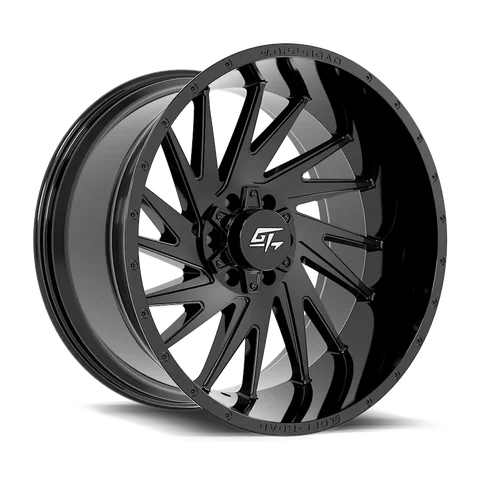

GT Off-Road Tomahawk in Gloss Black — Gloss Black

Complete spec sheet

Tomahawk part numbers

Every Tomahawk SKU by finish, size, offset and bolt pattern. Give your dealer the part number for an exact match.

Download CSV

72 of 72 part numbers

GT Off-Road Tomahawk part numbers
Finish	Size	Offset	Bolt pattern	Center bore (mm)	Max load (lbs)	Quote
Gloss Black Milled	20x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Milled	20x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Milled	20x9	+12	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Milled	20x9	+12	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black Milled	20x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Milled	20x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Milled	20x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Milled	20x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black Milled	22x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Milled	22x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Milled	22x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Milled	22x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black Milled	22x12	−44	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Milled	22x12	−44	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Milled	22x12	−44	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Milled	22x12	−44	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black Milled	24x12	−44	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Milled	24x12	−44	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Milled	24x12	−44	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Milled	24x12	−44	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black Milled	24x14	−76	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Milled	24x14	−76	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Milled	24x14	−76	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Milled	24x14	−76	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black	20x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black	20x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black	20x9	+12	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black	20x9	+12	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black	20x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black	20x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black	20x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black	20x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black	22x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black	22x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black	22x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black	22x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black	22x12	−44	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black	22x12	−44	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black	22x12	−44	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black	22x12	−44	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black	24x12	−44	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black	24x12	−44	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black	24x12	−44	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black	24x12	−44	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black	24x14	−76	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black	24x14	−76	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black	24x14	−76	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black	24x14	−76	8x165.1 / 8x180	125.2	3,200	Quote
Chrome	20x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Chrome	20x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Chrome	20x9	+12	8x165.1 / 8x170	125.2	3,200	Quote
Chrome	20x9	+12	8x165.1 / 8x180	125.2	3,200	Quote
Chrome	20x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Chrome	20x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Chrome	20x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Chrome	20x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Chrome	22x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Chrome	22x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Chrome	22x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Chrome	22x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Chrome	22x12	−44	5x127 / 5x139.7	78.1	2,500	Quote
Chrome	22x12	−44	6x135 / 6x139.7	106.1	2,500	Quote
Chrome	22x12	−44	8x165.1 / 8x170	125.2	3,200	Quote
Chrome	22x12	−44	8x165.1 / 8x180	125.2	3,200	Quote
Chrome	24x12	−44	5x127 / 5x139.7	78.1	2,500	Quote
Chrome	24x12	−44	6x135 / 6x139.7	106.1	2,500	Quote
Chrome	24x12	−44	8x165.1 / 8x170	125.2	3,200	Quote
Chrome	24x12	−44	8x165.1 / 8x180	125.2	3,200	Quote
Chrome	24x14	−76	5x127 / 5x139.7	78.1	2,500	Quote
Chrome	24x14	−76	6x135 / 6x139.7	106.1	2,500	Quote
Chrome	24x14	−76	8x165.1 / 8x170	125.2	3,200	Quote
Chrome	24x14	−76	8x165.1 / 8x180	125.2	3,200	Quote
